EATHU brings you to understand ANSI B16.5 and ASME B16.5.

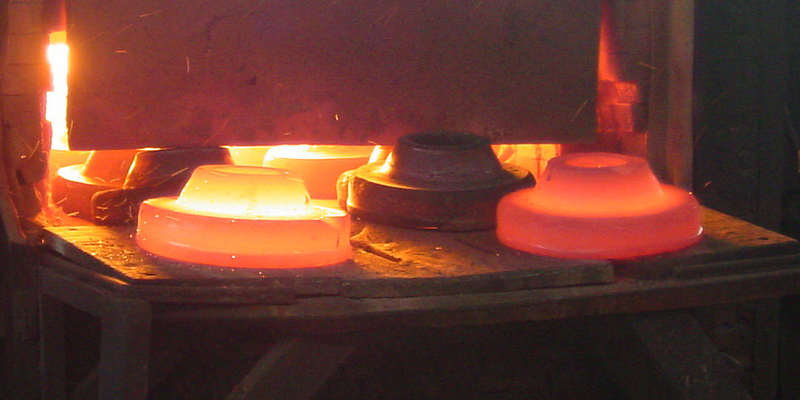

In the field of industrial pipeline connections, flanges, as key components, their standardization is crucial for ensuring the safe and efficient operation of pipeline systems. The two standards, ANSI B16.5 and ASME B16.5, play an important role in the design, manufacture, inspection, etc. of flanges. However, many people are confused about the relationship between them. This article will deeply explore whether ANSI B16.5 and ASME B16.5 are the same, and the possible differences between them. At the same time, it will comprehensively popularize knowledge about relevant standard codes and flanges.
I. Origin and Background of the Standards
(1) ANSI - American National Standards Institute ANSI was founded in 1918 and is a non - profit membership - based organization jointly initiated by five private groups, including the American Society of Mechanical Engineers (ASME). Its purpose is to promote the development and use of American national standards, promote the internationalization of standards, and improve the competitiveness of American products and services in the global market. ANSI itself does not develop standards but approves standards developed by other organizations, making them American national standards. ANSI plays a central role in coordinating domestic standards in the United States, ensuring the compatibility of standards in various industries and promoting the orderly development of the American industry.
(2) ASME - American Society of Mechanical Engineers ASME was founded in 1880 and is a professional organization with extensive influence in the field of mechanical engineering. ASME is committed to promoting the development of the mechanical engineering discipline, and the application and innovation of mechanical engineering technologies. ASME has developed numerous standards related to mechanical engineering, covering many fields such as boilers, pressure vessels, and pipeline systems. Its standards are known for being rigorous, scientific, and practical, and have been widely recognized and applied globally. In terms of flange standards, ASME B16.5 is one of its important standards in the field of pipe flanges and flanged fittings.
II. Relationship between ANSI B16.5 and ASME B16.5
Consistency of the Standards Essentially, ANSI B16.5 and ASME B16.5 are the same standard. As an accrediting body for American national standards, ANSI adopts the B16.5 standard developed by ASME as an American national standard, giving it the status of an ANSI standard. This means that in terms of technical requirements, dimensional specifications, material selection, as well as inspection and testing methods, ANSI B16.5 and ASME B16.5 are completely identical. They make unified and clear provisions on key elements of flanges, such as flange types, pressure ratings, connection dimensions, and sealing surface forms. For example, in the classification of flange pressure ratings, both standards cover multiple ratings from Class 150 to Class 2500. The dimensional, thickness, and bolt specifications corresponding to each rating are detailed and consistent. In terms of sealing surface forms, both include common forms such as flat face (FF), raised face (RF), male - and - female face (MFM), and tongue - and - groove face (TG), and the requirements for the dimensional tolerances and surface roughness of each sealing surface are also exactly the same.
III. Main Contents of the Standard
(1) Flange Types ANSI B16.5/ASME B16.5 covers a variety of common flange types, including slip - on flange (SO), weld neck flange (WN), socket weld flange (SW), and lap joint flange (LJ). Each flange type has its specific structural characteristics and application scenarios. The slip - on flange has a simple structure, is easy to install, and has a low cost. It is suitable for pipeline connections with low pressure and small diameters. Its connection method with the pipeline is to insert the pipeline into the inner hole of the flange and then weld on the outside of the flange. The weld neck flange has high strength and tightness and is suitable for important working conditions such as high pressure, high temperature, flammable, explosive, etc. It is connected to the pipeline by butt - welding, and the strength of the welded joint is equivalent to that of the pipeline body, which can effectively withstand various loads of the pipeline system. The socket weld flange is suitable for small - diameter pipelines. Its connection method is to insert the pipeline into the socket of the flange and then weld, which has the advantages of a tight connection and being less likely to leak. The lap joint flange is often used in occasions where frequent disassembly is required or where the pipeline has a certain displacement. It is connected to the pipeline through a loose ring. The flange body is not directly welded to the pipeline but can rotate freely on the loose ring, which is convenient for installation and adjustment.
(2) Pressure Ratings The standard specifies multiple pressure ratings from Class 150 to Class 2500. The classification of pressure ratings is mainly based on the maximum allowable working pressure of the flange at different temperatures. As the pressure rating increases, parameters such as the size, thickness, and bolt specifications of the flange also increase accordingly to meet the sealing and strength requirements under higher pressures. For example, the Class 150 flange is suitable for low - pressure working conditions, and its sealing surface size and bolt specifications are relatively small. The Class 2500 flange is used for high - pressure occasions. Its flange thickness is significantly increased, and the diameter and number of bolts also increase accordingly to ensure reliable sealing and connection strength in a high - pressure environment. In practical applications, selecting a flange with an appropriate pressure rating according to the working pressure, temperature, and other parameters of the pipeline system is the key to ensuring the safe operation of the pipeline system.
(3) Connection Dimensions The standard makes detailed provisions on the connection dimensions of flanges with different pressure ratings and pipe diameters, including the outer diameter, inner diameter, bolt - hole center - circle diameter, number, and diameter of bolt holes. The standardization of these dimensions ensures the interchangeability of flanges produced by different manufacturers, facilitating the design, installation, and maintenance of pipeline systems. For example, for flanges with the same pressure rating and pipe diameter, regardless of the manufacturer, their connection dimensions must comply with the provisions of ANSI B16.5/ASME B16.5. This makes it convenient to select suitable replacement products when replacing or repairing flanges without worrying about size mismatch. At the same time, the standardized connection dimensions are also conducive to the pre - fabrication and modular construction of pipeline systems, improving construction efficiency and quality.
(4) Sealing Surface Forms As mentioned before, the standard specifies various sealing surface forms such as flat face (FF), raised face (RF), male - and - female face (MFM), and tongue - and - groove face (TG). Different sealing surface forms are suitable for different working conditions and sealing requirements. The flat - face sealing surface is suitable for occasions with low pressure, non - toxic, and non - corrosive media, and its sealing performance is relatively weak. The raised - face sealing surface is one of the most commonly used sealing surface forms, suitable for general industrial pipeline connections, with good sealing performance and versatility. The male - and - female face and tongue - and - groove face sealing surfaces improve the reliability of sealing through male - female or tongue - groove matching, and are suitable for occasions with high pressure, flammable, explosive, toxic, or corrosive media. When selecting the sealing surface form, factors such as the working pressure, temperature, and nature of the medium of the pipeline system need to be comprehensively considered to ensure a good sealing effect.
IV. Relationship with Other Relevant Standards
(1) API - American Petroleum Institute Standards API (American Petroleum Institute) is an authoritative organization in the American petroleum industry and has developed a series of standards related to petroleum exploration, production, refining, transportation, etc. In terms of flange standards, API also has some standards related to ANSI B16.5/ASME B16.5, such as API 6A, API 6D, etc. These standards mainly make further provisions on the materials, performance, inspection, etc. of flanges according to the special requirements of the petroleum and natural gas industry. For example, API 6A is mainly used for wellhead equipment and Christmas trees and has strict requirements for the anti - hydrogen sulfide corrosion performance of flanges; API 6D is applicable to pipeline valves and pipeline connections and has special provisions for the low - temperature performance and fire - resistant performance of flanges. In projects in the petroleum and natural gas industry, it is usually necessary to comply with the requirements of both ANSI B16.5/ASME B16.5 and relevant API standards to ensure that the flanges can operate safely and reliably in harsh working environments.
(2) International Standards Internationally, the main standard corresponding to ANSI B16.5/ASME B16.5 is the ISO 7005 series of standards. ISO 7005 is a metal pipe flange standard developed by the International Organization for Standardization (ISO) and has been widely applied globally. Although ISO 7005 has some similarities with ANSI B16.5/ASME B16.5 in technical content, there are also some differences. For example, in the classification of pressure ratings, ISO 7005 adopts the PN (nominal pressure) series, which is different from the Class series of ANSI B16.5/ASME B16.5. There are also some subtle differences in dimensional specifications and sealing surface forms. In international trade and trans - national engineering projects, it is necessary to select the appropriate standard according to the specific situation and pay attention to the differences between different standards to ensure the correct selection and installation of flanges.
V. Importance in Practical Applications
(1) Ensuring the Safety of Pipeline Systems The strict provisions of the ANSI B16.5/ASME B16.5 standard ensure that the quality and performance of flanges meet the requirements, thus ensuring the safe operation of pipeline systems. In industries such as petroleum, chemical, and power, the media transported by pipeline systems often have characteristics such as high temperature, high pressure, flammability, explosiveness, and toxicity. If the quality of flanges is unqualified or does not meet the standard requirements, it may lead to serious accidents such as pipeline leaks and explosions, causing casualties and property losses. Selecting and using flanges in accordance with this standard can effectively reduce the accident risk and ensure the safety and stability of the production process.
(2) Improving Engineering Efficiency The standardized design and manufacture of flanges make the design, installation, and maintenance of pipeline systems more convenient and efficient. Engineers can quickly select the appropriate flange type, pressure rating, and connection dimensions according to the standard, reducing the workload of design calculations. At the same time, standardized products are also convenient for procurement and inventory management, improving the efficiency of material supply. During the installation process, since flanges produced by different manufacturers that meet the standard are interchangeable, construction workers can install and debug more smoothly, shortening the construction period. During the maintenance and repair of pipeline systems, it is also convenient to replace damaged flanges, reducing maintenance costs and downtime.
VI. Conclusion In summary, although ANSI B16.5 and ASME B16.5 have different codes, they are actually the same standard.
They make comprehensive, detailed, and consistent provisions in the design, manufacture, inspection, etc. of flanges. This standard covers a variety of flange types, pressure ratings, connection dimensions, and sealing surface forms, and is related to other relevant standards such as API standards and ISO standards, jointly forming a complete flange standard system. In practical applications, ANSI B16.5/ASME B16.5 plays a crucial role in ensuring the safety of pipeline systems, improving engineering efficiency, and promoting international trade. Whether it is professionals engaged in pipeline design, manufacture, installation, or maintenance, they should deeply understand and master this standard to ensure the correct selection and use of flanges in their work, providing a strong guarantee for the safety and development of industrial production. At the same time, with the continuous progress of technology and the development of the industry, relevant standards may be continuously revised and improved. We need to continuously pay attention to the update trends of the standards to adapt to new requirements and challenges.
