Ring Anchor System
Ring Clutch – Professional Lifting Solution for Spread Anchor Systems
Application:
Ring cluth system is standard lifting clutch for all anchors in the spread anchor system.
The ring cluth consists of a shackle and a cluth head. The shackle is free to move in any direction. The cluth head incorporates a locking bolt which fastens to the anchor.
Specification:
| Precast Concrete Hardware-Ring Clutch | ||||||||
|---|---|---|---|---|---|---|---|---|

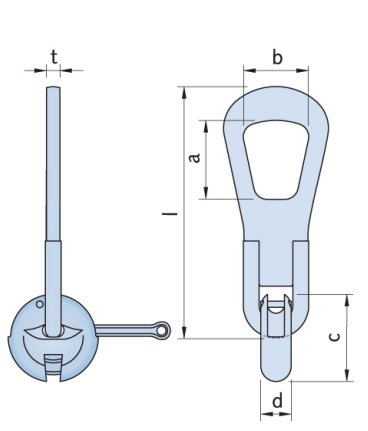

| Picture | Product Code | Load Group | Dimensions (mm) | |||||
 | l | a | b | c | d | t | ||
| RA-R1 2.5 | 2500 | 265 | 70 | 58 | 80 | 27 | 12 | |
| RA-R1 5.0 | 5000 | 330 | 86 | 65 | 105 | 36 | 16 | |
| RA-R1 10.0 | 10000 | 425 | 112 | 90 | 150 | 50 | 25 | |
| RA-R1 26.0 | 26000 | 605 | 160 | 120 | 206 | 72 | 30 | |
Product Details
Product Introduction
The Ring Clutch is a standard lifting device specifically engineered for all anchors in the spread anchor system. Designed for safe and efficient lifting of precast concrete elements, it ensures strong engagement, secure lifting, and easy operation in construction environments.
This product is widely used in precast construction projects, including walls, panels, beams, and slabs.
How the Ring Clutch Works

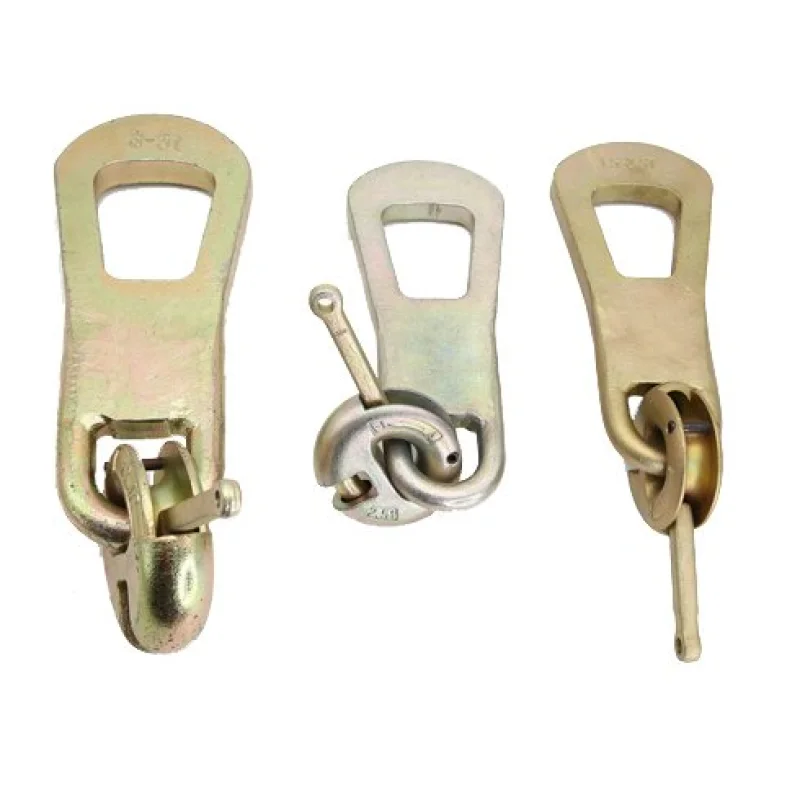

The Ring Clutch consists of two key parts:
Clutch Head
Precision-machined to connect securely with the spread anchor, the clutch head features an integrated locking bolt that locks into the anchor’s head. This guarantees safe load transfer and prevents accidental disengagement during lifting.
Ring Shackle
The forged ring-shaped shackle allows 360° rotation and multi-angle lifting, offering maximum flexibility and reducing stress on both the lifting device and the concrete element.
Why Choose Our Ring Clutch?
Made under ISO 9001 certified quality control
Fully tested and CE compliant
Trusted by customers across Europe, North America, and the Middle East
Consistent performance for precast lifting solutions
Available in OEM & custom branding
