Necked Slip-On Flanges 101 : Features & Benefits

I. Introduction to Necked Slip-On Flanges

In the vast and complex industrial pipeline system, necked slip-on flanges (SO flanges) are like a "screw" - although they may not be very noticeable, they are of vital importance. They are key components that ensure the stable connection and good sealing of pipelines. As pipeline elements, the role of SO flanges cannot be ignored. They are like bridges connecting various steel pipes, pipe fittings, etc., enabling the pipeline system to form a complete passage, thus facilitating the transportation of fluids or gases.

(1) Distinctive Structural Features

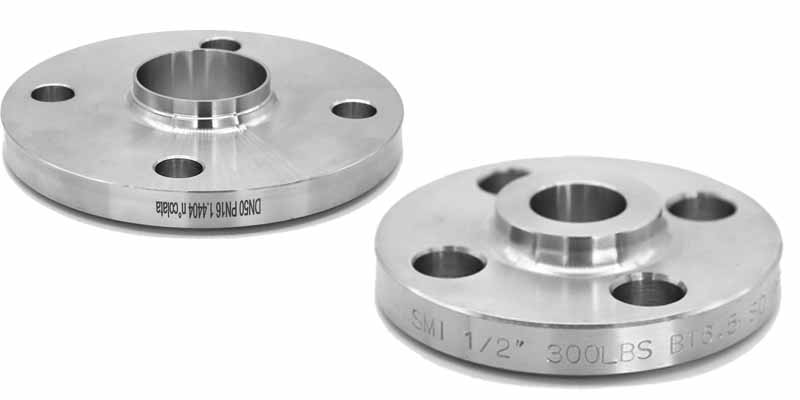

1. The structure of necked slip-on flanges is unique. The most remarkable feature is the short neck that connects the sealing surface and the end face of the pipe. The existence of this short neck not only endows the flange with a certain degree of flexibility, allowing it to adapt to the thermal expansion and contraction of the pipeline to a certain extent, but also effectively distributes the stress, enhancing the overall bearing capacity and strength of the flange. When the pipeline is subjected to complex stress effects such as internal pressure and external forces, the short neck area can act like a "buffer zone", effectively transmitting and distributing the stress, avoiding stress concentration at the sealing surface or connection part, thereby improving the durability and reliability of the flange.

2. In terms of appearance, the short neck structure of the SO flange makes its appearance simple and regular, which is convenient for workers to carry out various operations. During the installation process, workers can more easily hold the short neck part, carry out accurate docking and fixing operations, reducing the difficulty and error rate of installation. Moreover, during subsequent maintenance and inspection, the short neck structure also helps to locate the problem part more quickly, improving the maintenance efficiency.

(2) Significant Differences from Other Flanges

Compared with slip-on flanges, necked slip-on flanges have an additional neck. This seemingly simple structural difference brings many functional improvements. Slip-on flanges usually directly weld the end of the pipe to the flange plate, and the welding area is relatively small. When subjected to relatively large pressure, they are prone to deformation or leakage. However, the neck of the SO flange increases the welding area, making the welding more firm and reliable, and enabling it to withstand higher pressure.

Compared with butt-welding flanges, the neck of the necked slip-on flange is shorter, the processing is relatively easier, the construction period is shorter, and the cost is also relatively lower. Butt-welding flanges require complete butt-welding of the pipe end and the flange, and the welding process requirements are relatively high, the processing time is longer, and the cost also increases accordingly. While the SO flange, under the condition of meeting certain pressure requirements, has become the first choice in many engineering projects due to its relatively simple structure and lower cost.

II. Structure and Materials of Necked Slip-on Flanges

(1) The Ingenuity of the Short Neck Design

1. The short neck design of necked slip-on flanges is truly remarkable. This unique design is by no means just a form of existence, but a crystallization of wisdom carefully conceived to meet actual usage requirements. From a mechanical perspective, the short neck is like a solid "arm", effectively enhancing the overall strength and bearing capacity of the flange. During the operation of the pipeline system, when the medium flows at high speed in the pipeline, or the pipeline needs to withstand external pressure, tension and other external forces, the short neck can, by virtue of its unique shape and structural characteristics, better distribute and transmit these stresses.

2. In addition, the ingenious combination of the short neck design and the welding method further enhances the performance of the flange. During the welding process, the short neck area provides a good foundation for welding, making the fillet weld relatively long. A longer fillet weld means a wider welding coverage area, thus greatly improving the firmness and reliability of the welding. This firm welding connection is like building a solid defense line for the pipeline system, effectively preventing problems such as separation and leakage caused by poor welding.

(2) Diverse Material Selection and Development Trends

1. In terms of material selection, necked slip-on flanges offer a wide variety of options. Carbon steel, with its good mechanical properties and processability, has become a common choice. It is relatively low in price and suitable for some ordinary pipeline systems with relatively low requirements for pressure and corrosion resistance. For example, in some civil pipeline projects such as urban water supply and heating, carbon steel necked slip-on flanges play an important role.

2. Chrome-molybdenum steel stands out with its excellent high-temperature resistance and wear resistance. In some high-temperature and high-pressure pipeline systems in industries such as chemical engineering and petroleum, the temperature and pressure of the medium are often relatively high, which puts extremely high requirements on the material properties of the flanges. Chrome-molybdenum steel can work stably for a long time in such harsh environments, ensuring the safe and reliable operation of the pipeline system.

3. Stainless steel materials are the "high-end players" among necked slip-on flanges. 304 stainless steel has good corrosion resistance and is widely used in industries with strict requirements for hygiene and corrosion resistance, such as food processing and pharmaceuticals. 316 stainless steel, with its higher chromium and molybdenum content, has stronger corrosion resistance and wear resistance, and is particularly suitable for applications in marine environments, chemical engineering, and other fields.

4. With the continuous progress of science and technology, the research and development and application of new alloy materials have also brought new opportunities for the performance improvement of necked slip-on flanges. These new materials have advantages such as higher strength, better corrosion resistance, and lower density, providing possibilities for the application of necked slip-on flanges in extreme environments and high-end fields.

III. Sealing Forms and Application Scope of Necked Slip-on Flanges

(1) Diverse Sealing Surface Forms

1. The sealing surface forms of necked slip-on flanges are diverse, just like its "features", and each form has its unique function and application scenarios.

2. The RF (Raised Face) sealing surface is the most common one. It is like a flat "platform", with a simple structure, convenient processing, and low cost. In a low-pressure or medium-pressure environment, the RF sealing surface can form a good sealing effect with the corresponding sealing gasket, ensuring that the medium in the pipeline stays in place.

3. The FM (Female Face) and M (Male Face) sealing surfaces are like a pair of well-matched "lovers". The female and male surfaces can fit closely during installation, forming an efficient sealing channel. This sealing surface form is suitable for occasions with slightly higher pressure and more stringent requirements for sealing performance, such as some medium-pressure chemical pipeline systems.

4. The Tongue (T) and Groove (G) sealing surfaces seem to be designed for "specific tasks". The structural design of the tongue and groove surfaces makes the fit between the flange and the sealing element closer, effectively preventing the leakage of the medium. They are often used in high-pressure or ultra-high-pressure pipeline systems, such as large-scale petroleum and natural gas pipeline projects.

5. The FF (Flat Face) sealing surface is like a "smooth mirror" and is suitable for some low-pressure or vacuum systems, where extremely high requirements are placed on the flatness of the sealing surface.

(2) Wide Application Scope and Limitations

1. The application scope of necked slip-on flanges is quite extensive. They can be applied to pipeline systems with PN series ranging from PN2.5 to PN40 and Class series ranging from Class150 to Class1500. This enables them to play an important role in numerous industrial fields.

2. In the chemical industry, a large number of chemical raw materials and products need to be transported through pipelines. The SO flange, with its good sealing performance and corrosion resistance, has become a "capable assistant" in chemical pipeline systems. In the fields of oil and gas exploration and transportation, the SO flange can withstand relatively high pressure, ensuring the safe transportation of oil and gas. In light industries such as food and pharmaceuticals, the hygiene and convenience of the SO flange have also been widely recognized.

3. However, everything has its limitations. In extreme environments such as high temperature and high corrosion, the SO flange may experience problems such as a decrease in sealing performance and a weakening of strength. For example, in a high-temperature environment, the sealing gasket may deform and age, leading to sealing failure; in a highly corrosive environment, the flange material may be corroded, affecting its service life.

IV. Analysis of the Advantages and Disadvantages of Necked Slip-on Flanges

(1) Significant Advantages of Necked Slip-on Flanges

1. Higher Strength and Bearing Capacity: Its unique short neck design is like a sturdy "bridge", effectively enhancing the overall strength and bearing capacity of the flange. When the pipeline system needs to withstand pressure from all directions, for example, in a high-pressure steam transportation pipeline, the necked slip-on flange can maintain the stability of its structure, preventing deformation or damage due to excessive pressure and ensuring the safe operation of the pipeline.

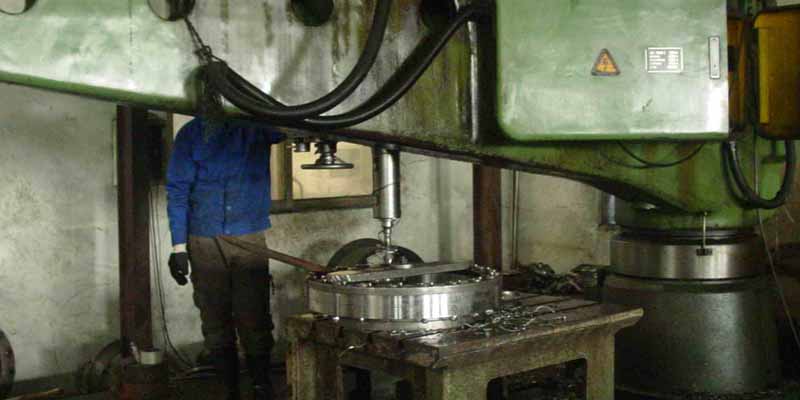

2. Relatively Convenient Manufacturing: Compared with some other flanges with complex structures, the manufacturing process of necked slip-on flanges is relatively simple and straightforward. During the manufacturing process, relatively fewer molds and processing equipment are required, and the difficulty of operation for workers is also relatively low. This not only greatly shortens the production cycle of the flanges but also reduces production costs and improves production efficiency.

3. Convenient On-site Installation: The structural characteristics of the necked slip-on flange give it many advantages during on-site installation. Due to its short neck design and simple structure, installation personnel can carry out installation operations more easily, reducing the installation time. Moreover, during the installation process, the operation of inspecting and repairing the weld seam can be omitted, further improving the construction efficiency.

(2) Disadvantages of Necked Slip-on Flanges

1. Relatively High Cost: Although the manufacturing is relatively convenient, due to the need to ensure high strength and sealing performance, certain requirements are placed on materials and processing technology. This leads to a relatively higher cost compared to some ordinary flanges. In some projects with strict cost control requirements, the relatively high cost may become an obstacle to its application.

2. Prone to Damage during Transportation: The shape characteristics of the necked slip-on flange make it relatively fragile during transportation. Especially the neck area is likely to be damaged if it is accidentally collided. This will not only affect the quality and performance of the flange but may also cause problems during installation. Therefore, when transporting necked slip-on flanges, additional protective measures need to be taken to ensure their integrity.

3.  Certain Limitations in the Application Scope: Although the application scope of necked slip-on flanges is relatively wide, under some special working conditions, their performance may be limited. For example, in extremely high-temperature or highly corrosive environments, the necked slip-on flange may experience problems such as sealing failure and a decrease in strength. In such cases, it may be necessary to select more professional flanges that are more resistant to high temperatures or corrosion.

V. Application Examples and Future Prospects of Necked Slip-on Flanges

(1) Display of Typical Application Scenarios

In the chemical industry, necked slip-on flanges are often used for the connection of inlet and outlet pipelines of various chemical reaction tanks and storage tanks. Take the sulfuric acid production device of a large chemical enterprise as an example. The sulfuric acid produced by the reaction kettle needs to be transported to the storage tank through pipelines. Since sulfuric acid is highly corrosive, extremely high requirements are placed on the sealing and corrosion resistance of the pipeline connection. The necked slip-on flange, when used in conjunction with a sealing gasket with good corrosion resistance (such as a polytetrafluoroethylene gasket), ensures that there is no leakage of sulfuric acid during the transportation process, guaranteeing the safety and stability of production.

In the field of oil exploration, necked slip-on flanges play an important role in the connection between oil well casings and tubing. For example, in the oil well exploitation operations on offshore oil platforms, the oil well pipelines need to withstand the challenges of huge water pressure and a corrosive environment. The necked slip-on flange can withstand high pressure and corrosion, ensuring the reliable connection of the oil well pipelines, preventing oil and gas leakage, and providing guarantee for the smooth progress of oil exploration.

(2) Future Development Prospects

1. With the continuous progress of industrial technology, higher requirements have been put forward for the performance, reliability, and adaptability of necked slip-on flanges. In terms of materials, more high-performance new alloy materials will be developed in the future, further improving the strength, corrosion resistance, wear resistance, and other properties of the flanges to meet the usage requirements in extreme environments.

2. In terms of manufacturing processes, by introducing advanced digital manufacturing technologies such as 3D printing and intelligent manufacturing, the manufacturing accuracy and quality stability of flanges will be improved, the manufacturing cycle will be shortened, and the cost will be reduced. At the same time, more efficient sealing materials and sealing structures will be developed to improve the sealing performance and service life of flanges.

3. In terms of design, according to different application scenarios and working conditions, the structural design of necked slip-on flanges will be further optimized, such as improving the shape and size of the short neck to enhance the overall performance of the flange. In addition, through the combination with other advanced technologies, such as sensor technology and the Internet of Things technology, intelligent monitoring and maintenance of the flanges can be achieved, potential problems can be discovered and solved in a timely manner, and the safety and reliability of the pipeline system can be improved.

4. Under the background of environmental protection and sustainable development, the environmental performance of necked slip-on flanges will also receive more attention. The research and development of recyclable and biodegradable flange materials to reduce the impact on the environment is an important development direction in the future.

5. In conclusion, as an indispensable connecting component in the pipeline system, although necked slip-on flanges have some shortcomings, they play an important role in numerous industrial fields by virtue of their unique advantages. With the continuous progress of science and technology and the continuous expansion of industrial applications, necked slip-on flanges will continue to develop and improve, providing more reliable guarantees for industrial production.
