The Ultimate Guide to Grooved Pipe Fittings and Their Applications
Introduction
Grooved pipe fittings have revolutionized modern piping systems, offering a quick and efficient alternative to traditional welding and threading methods. These fittings are widely used in HVAC, fire protection, water supply, and industrial piping due to their ease of installation, flexibility, and strong sealing performance.
In this guide, we will explore the different types of grooved pipe fittings, key selection criteria, and how EATHU, a leading Chinese manufacturer, provides high-quality grooved pipe fittings for global markets.

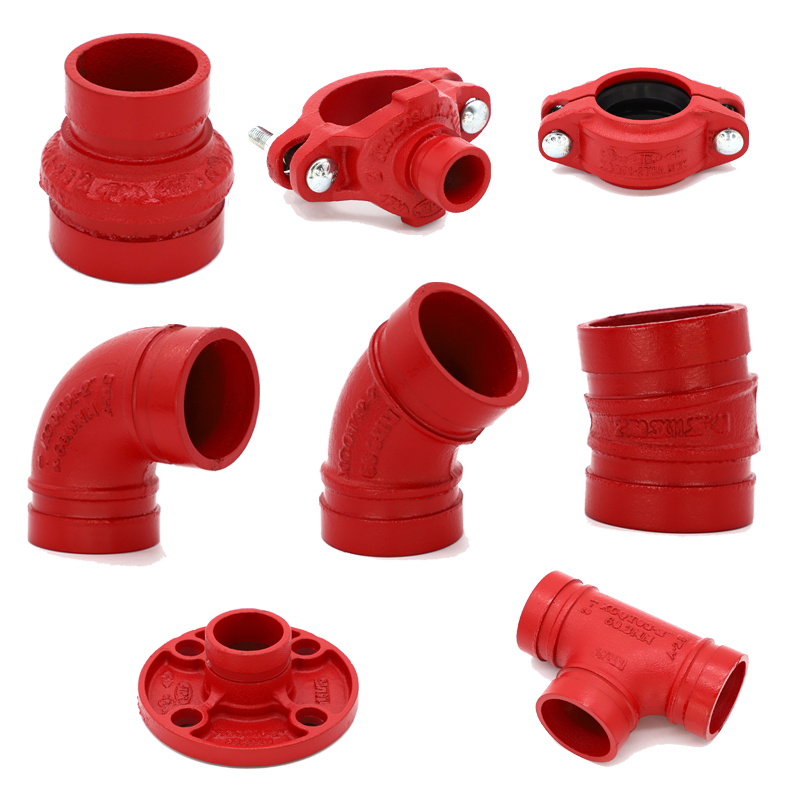

Types of Grooved Pipe Fittings
Grooved pipe fittings are broadly classified into two categories:
1. Fittings for Connection and Sealing
These fittings ensure a secure and leak-proof connection between pipes. They include:

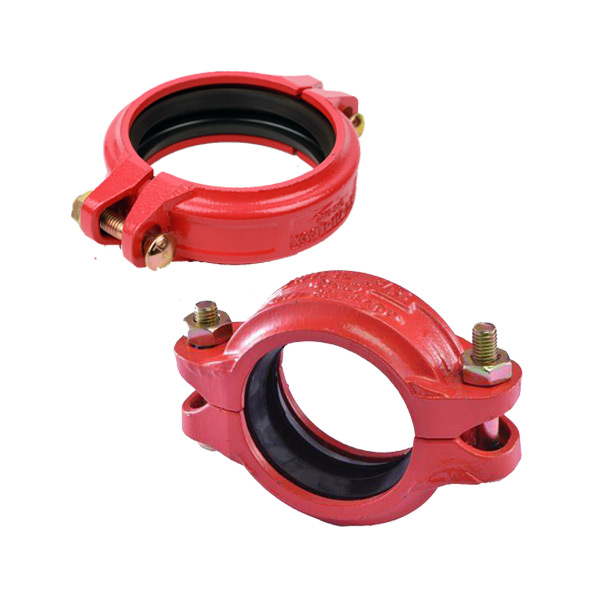

Rigid Couplings: Designed to prevent any movement between the connected pipes, providing a firm and stable connection.
Flexible Couplings: Allow for controlled movement and expansion, which is essential for applications where thermal expansion or vibration is a concern.
Mechanical Tees: Enable the creation of branch connections in piping systems.
Grooved Flanges: Used to transition between grooved piping and flanged equipment or valves.
These fittings consist of sealing rubber gaskets, clamps, and locking bolts, ensuring a tight and secure fit. The sealing performance improves as the internal pressure of the pipeline increases.
2. Fittings for Connection and Transition
These fittings help in changing direction, branching, or adapting different pipe sizes. They include:

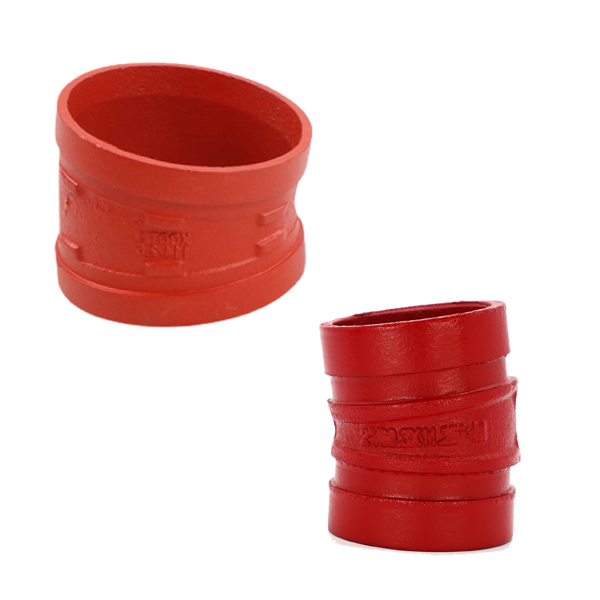

Elbows: Available in 90-degree and 45-degree angles, allowing changes in pipeline direction.
Tees and Crosses: Used for branching connections within a piping system.
Reducers: Help in connecting pipes of different diameters.
End Caps: Used to close the end of a pipeline.
|
|
|
Key Considerations When Selecting Grooved Pipe Fittings
Rigid vs. Flexible Coupling
The choice between rigid and flexible couplings depends on the application:
For domestic hot water, air conditioning water, and outdoor piping, flexible couplings are necessary to accommodate expansion and contraction. Metal expansion joints may be added for additional flexibility.
For pipelines with minimal temperature variations (e.g., indoor fire protection systems), rigid couplings are suitable, but long straight pipelines should have at least one flexible coupling.
For pump room piping, underground piping, and small-radius curved pipelines, flexible couplings are recommended for stress absorption and adaptability.
2. Mechanical Tees and Crosses vs. Grooved Tees and Crosses
Mechanical tees and crosses are cost-effective but have lower strength, making them unsuitable for areas with high stress.
For lateral branching, mechanical tees and crosses can be used, but the pipe must maintain sufficient strength after drilling the hole.
3. Single-Piece Flange vs. Grooved Flange
Single-piece flanges tend to leak when connected to butterfly valves.
For butterfly valve connections, grooved flanges are recommended to ensure a better seal.
Advantages of Grooved Pipe Fittings
Grooved pipe fittings offer several benefits compared to traditional welding or threading methods:
1. Quick and Easy Installation
No welding or threading is required, reducing labor time and costs.
Assembly requires only a wrench, making installation faster and simpler.
2. High Flexibility and Adaptability
Flexible couplings allow for movement due to thermal expansion, vibration, or seismic activity.
Easily adaptable for system modifications and expansions.
3. Superior Sealing Performance
The rubber gasket inside the fitting provides a tight seal, improving as internal pressure increases.
4. Enhanced Safety
No open flames or welding is required, making it safer for installations in hazardous environments.
EATHU: Your Reliable Supplier for Grooved Pipe Fittings
As a trusted supplier of grooved pipe fittings, EATHU provides high-quality solutions for various industries worldwide. Our products are manufactured to meet ISO 9001 quality standards, ensuring durability, reliability, and compliance with international requirements.
Why Choose EATHU Grooved Pipe Fittings?
Premium Quality: We use high-grade materials and advanced manufacturing processes.
Global Reach: We serve clients across North America, Europe, Asia, and beyond.
Competitive Pricing: Cost-effective solutions without compromising quality.
Comprehensive Product Range: We offer a full lineup of grooved pipe fittings, including couplings, elbows, tees, reducers, and flanges.
Technical Support: Our expert team provides guidance on product selection, system design, and installation.
Applications of EATHU Grooved Pipe Fittings
EATHU grooved pipe fittings are used in diverse industries, including:
Fire Protection Systems: Reliable and easy-to-install fittings for sprinkler systems.
HVAC Systems: Flexible solutions for air conditioning and chilled water pipelines.
Water Supply and Drainage: Secure and long-lasting connections for water distribution networks.
Industrial Piping: Ideal for chemical processing, oil and gas, and power generation industries.
Conclusion
Grooved pipe fittings have transformed the piping industry with their efficiency, reliability, and cost-effectiveness. Whether for fire protection, HVAC, or industrial applications, choosing the right fittings is crucial for system performance and longevity.
EATHU is your trusted partner for high-quality grooved pipe fittings, offering expert guidance and top-tier products for global markets. Contact us today to learn more about our solutions and how we can support your business needs.
For more information, visit our website or reach out to our sales team for a customized solution tailored to your project requirements.
